Main Features

• Ultrasonic Technology: Generates low fog using water as the main component, eliminating the need for dry ice.
• Environmentally Friendly and Cost-Effective: Uses water instead of dry ice, making it both eco-friendly and economical.
• Specific Liquid Requirement: Requires Triton Blue’s specific liquid (model 832-1072) in minimal quantities for fog production.
• Molded and Compact Housing: Designed to be lightweight, durable, rust-resistant, and easy to transport.
• Built-in Atomizer: Features an integrated water atomizer in the tank for smooth fog generation.
• Quick Startup Time: Operates in just 2 minutes after switching on.
• Water Level Sensor and External Indicator: Equipped with a water shortage sensor and an external level indicator for easy monitoring.
• Adjustable Fan Speed: Provides flexibility in controlling the fog output.

Specifications

• Power Supply: 200V-240V 50/60Hz
• Power Consumption: 1,500W
• Fuse: 8A/250V
• Coverage Area: 80m²
• Warm-Up Time: 3 minutes
• Fog Liquid Tank Capacity: 1.8 L (liquid model 832-1072), consumption: 1-30 ml/min
• Water Tank Capacity: 7.7 L
• Control Modes: DMX, onboard manual control (fog output, fan speed, and timer)
• DMX Control: 2 channels
• Display: LCD

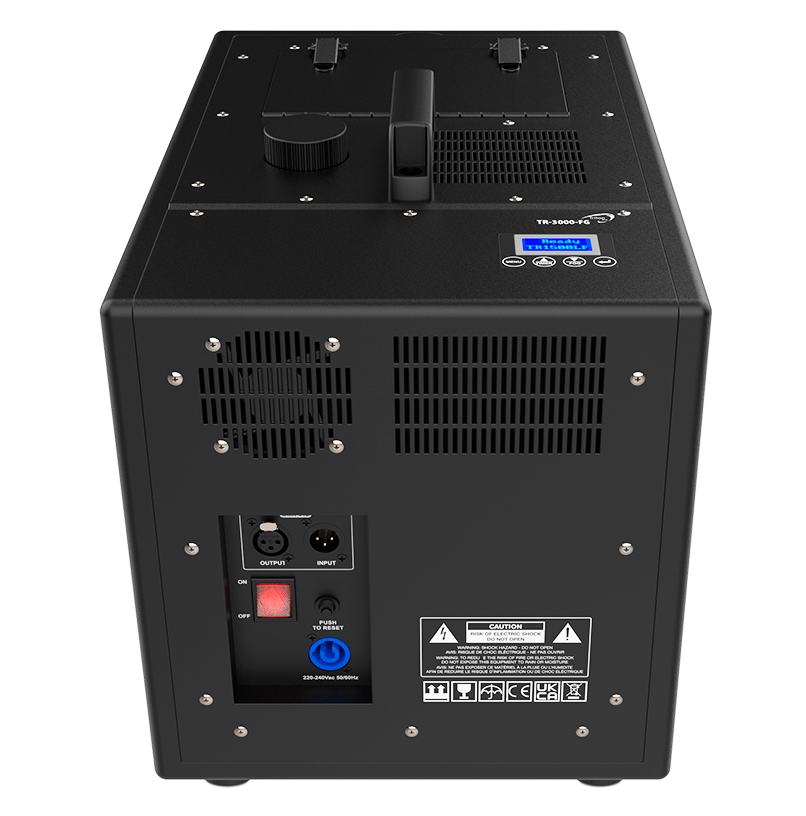

• Power Input: 16A PowerCON connector
• DMX Connectivity: 3-pin XLR in/out
• Control Panel: 4-button interface
• Color: Black
• Dimensions: 470 x 370 x 310 mm
• Weight: 21 kg

Included in the Package

• 1 Draco 1500 LF low fog machine
• 1 Extension hose with quick adapter and nozzle
• 1 PVC fog output nozzle
• 1 PowerCON/Schuko power cable (1.5 m)
• 1 User manual

Identification

• Brand: Triton Blue
• Model: Draco 1500 LF
• Order Code: Draco 1500 LF
• ID Code: 10287061
• EAN Code: 8474407181570

Accessories Not Included

• 5-liter low fog liquid (model 832-1072)
